CASE STUDY

The Kissof Shame

The world's very first AI-enhanced magnetic tape emulation

Product DesignAlgorithm TuningUX ResearchBrand Strategy

DOWNLOAD NOW Read The Write-Up Fork The Repo

It's the Greatest Thing Since Sliced Tape - Kiss of Shame

PROCESSING

SCROLL

Design Philosophy

Interface > Algorithm

With most pro-audio software, the user experience is an afterthought. I inverted this paradigm. The UI design dictated the algorithm design.

The Minimal Feature Set

While most analogue tape emulation DAW plugins overflow the UI with endlessly tweak-able parameters, every pixel on the Kiss of Shame was designed with the utmost intention. Rather than overwhelming users with technical faculities, I distilled the tape emulation into its most essential, sonically-relevant controls.

The central 'Shame' knob was my north star: A single control that elegantly orchestrates complex interactions between a host of high-fidelity emulative signal processing including drift, wow, flutter, and scrape-flutter. The first + the latter have still never been modeled by any other SW offering in the digital audio domain.

Algorithm Constraints

Real-time Performance:

Each algorithm was optimized for zero-latency processing

Musical Relevance:

To optimize perf, only phenomena that enhanced had measure effect on source signal character were modeled

Intuitive Control:

Complex processes mapped to simple, expressive parameters rather than a host of buttons, switches and drop down menus

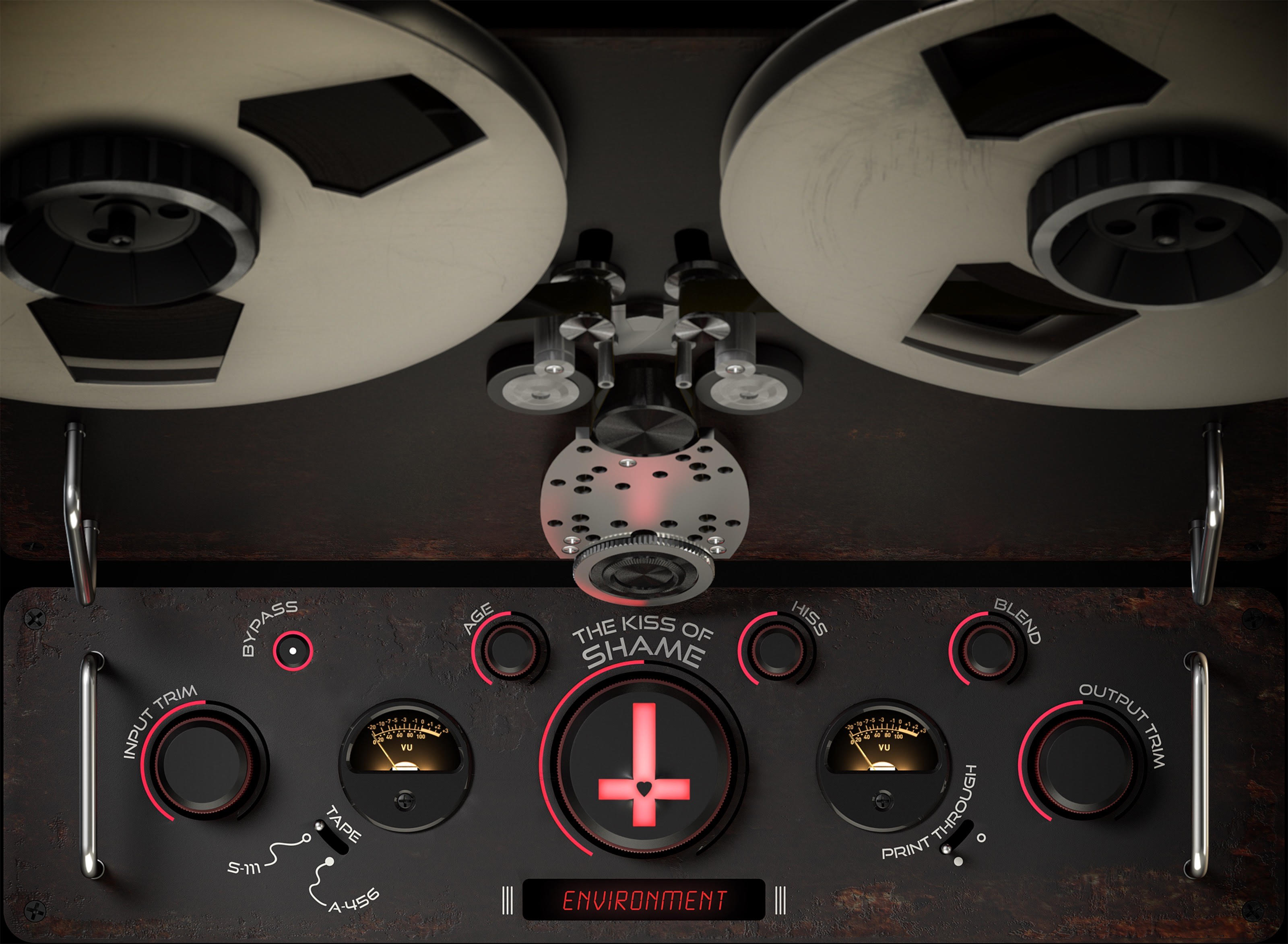

Complete Kiss of Shame plugin interface showing all controls and tape machine design

Complete plugin interface: Design-driven approach where visual elements directly influenced algorithmic development

Design Process

Iterative Refinement

Through rounds of data + intuition-driven iteration, I consolidated parameters and coordinated interface development with algorithm refinement to achieve a minimal yet powerful feature space.

Design iterations showing evolution from concept to final interface, including physical tape reels and multiple UI variations

From Complexity to Clarity

Early mockups explored either entirely different feature spaces and varying layouts. Via rigorous testing + user feedback, we systematically eliminated redundant controls and consolidated related functions into a largely unified parameter set.

Physical tape reels served as both inspiration and obstacle—the tactile nature in this use case demanded that digital interactions feel equally immediate and intuitive. Each iteration brought us closer to this ideal of transparent control.

Parameter Consolidation Strategy

Unified Controls:

Multiple DSP processes mapped to single, actionable controls

Algorithm Coordination:

Interface changes drove corresponding algorithm optimizations

Visual Hierarchy:

Each iteration refined the relationship between control importance and visual weight

Early Prototypes

15+ individual parameters, complex routing matrices

Final Interface

7 essential controls, unified parameter mapping

User Research

AES Convention 2014: The Laboratory

Debuting at the Audio Engineering Society Convention provided an unprecedented opportunity for grassroots user experience research with the world's most discerning audio professionals.

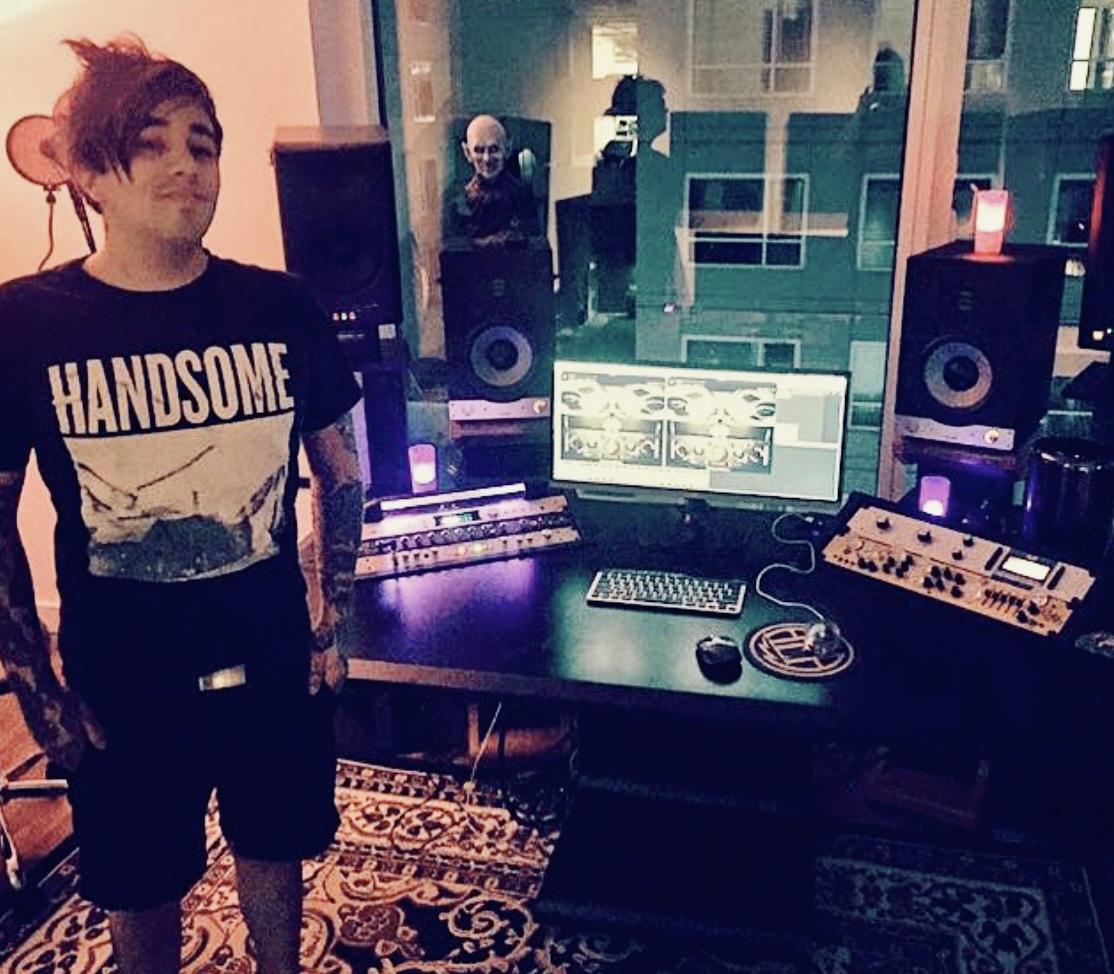

Professional studio demonstration of Kiss of Shame plugin at AES Convention

Running through an early pre-beta build of The Kiss of Shame at my former studio in the W Hollywood Residences - Los Angeles, California

Real-World Validation

The convention floor became our usability laboratory. Watching Grammy-winning engineers interact with the interface revealed critical insights about professional workflow integration.

The interactive reels, initially conceived as a novel interface element, proved to be the plugin's most compelling feature—engineers immediately understood the tactile metaphor.

Key Insights

Tactile Metaphors:

Physical interactions translated perfectly to digital interfaces

Visual Feedback:

Animated elements provided crucial processing state information

Workflow Integration:

Single-window design eliminated context switching

User-Centered Design

Designed for the Modern Audio Professional

The Kiss of Shame was crafted during the laptop recording revolution, when professional audio production was transitioning from dedicated studios to mobile workstations. Every design decision reflected the needs of diverse audio professionals working in varied environments.

Professional Audio Engineers

Studio & Post-Production

Engineers working in professional studios demanded authentic tape character without the maintenance overhead of physical machines. They needed precise control over degradation characteristics while maintaining zero-latency performance for real-time tracking and mixing.

Design Considerations:

• Comprehensive parameter set for precise sonic sculpting
• Professional-grade VU metering for gain staging
• Preset system for rapid workflow integration
• CPU-efficient algorithms for large session counts

Prosumers & Home Studio Owners

The Laptop Recording Revolution

The 2010s saw an explosion of bedroom producers and home studios powered by laptops. These users needed professional-quality tools that were intuitive enough to use without extensive training, yet powerful enough to compete with commercial releases.

Design Considerations:

• Single-knob "Shame" control for instant gratification
• Visual feedback through animated reels for learning
• Minimal CPU footprint for laptop processors
• Collapsible interface for 13-15" screen real estate

FOH & Live Sound Engineers

Mobile Rigs & Festival Systems

Front-of-house engineers increasingly relied on laptop-based systems for live sound processing. They needed tools that could add character to digital sources in real-time, with interfaces optimized for quick adjustments in high-pressure live environments.

Design Considerations:

• Large, touch-friendly controls for stage lighting conditions
• Minimal latency for live monitoring applications
• Stable performance under varying system loads
• Quick preset recall for different acts/songs

Sound Designers for Film

Field Recording & Post-Production

Film sound designers and foley artists working on location needed portable solutions that could add vintage character to field recordings. Mobile rigs on laptops required efficient interfaces that maximized limited screen space while maintaining creative flexibility.

Design Considerations:

• Collapsible reels to conserve 15" screen real estate
• Environmental presets (Hurricane Sandy) for narrative effects
• Batch processing capabilities for large sound libraries
• Authentic degradation for period-accurate soundscapes

The 15-Inch Constraint

In 2014, the MacBook Pro 15" was the workhorse of mobile audio production. Field recordists, foley artists, and traveling engineers needed every pixel of screen space for their DAW timeline and mixer views.

The collapsible reel design wasn't just aesthetic—it was a functional necessity. When collapsed, the plugin occupied minimal vertical space, allowing users to stack multiple instances while maintaining visibility of their session. When expanded, the reels provided tactile interaction and visual feedback without overwhelming the workspace.

Collapsed Mode

~180px height - essential controls only

Expanded Mode

~420px height - full interactive experience

The Laptop Recording Era

2010-2014:

Transition from desktop workstations to laptop-based production became mainstream

Mobile Workflows:

Field recording, location mixing, and remote collaboration required portable solutions

Screen Constraints:

15" displays (1440x900 or 1680x1050) demanded efficient UI design

Performance Demands:

Laptop CPUs required optimized algorithms for real-time processing

Reductionist Philosophy & UX Optimization

While competitors overwhelmed users with cognitively overloading interfaces packed with dozens of parameters, The Kiss of Shame pioneered a reductionist approach where minimal featureset directly informed algorithm development. This wasn't just aesthetic—it was a fundamental UX optimization strategy.

The audio plugin industry in 2014 was obsessed with exactly simulating 19-inch rack hardware, then cramming it into tiny plugin windows with small screen sizes, and finally adding features—mostly secondary add-ons that existed for the sake of existing, adding minimal sonic value. Tenured audio engineers, especially veteran professionals, consistently told me: "I just want a tape sim that I can instantiate on a track or bus and have it already sound good, not a million little parameters to tweak."

Inclusivity Through Design

Large format facilities had consoles and extensive hardware retrofitted with digital audio computer systems. Screens were secondary, often placed in small, inconvenient, unnatural positions—causing added strain, especially for older engineers who built their careers on tactile, physical equipment.

By employing bleeding-edge human factors research and UX/UI best practices from "big tech" (unprecedented in pro-audio at the time), The Kiss of Shame remedied these engineering obstacles. It was the first high-caliber tape emulation plugin to be truly user-centered, prioritizing accessibility and workflow efficiency over feature bloat.

Competitor Approach

Skeuomorphic hardware replication → Screen size reduction → Feature addition → Cognitive overload

Kiss of Shame Approach

User needs research → Minimal UI design → Algorithm optimization → Instant gratification

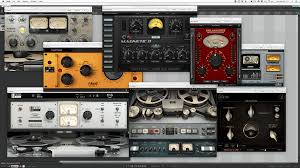

Collection of competitor tape emulation plugins showing cluttered interfaces with excessive parameters and controls

Typical competitor interfaces: Cognitively overloading designs with dozens of parameters, small text, and cluttered layouts that prioritized hardware replication over user experience

The "Big Tech" Design Ethos

User Research First:

Extensive field testing at AES 2014 with professional engineers informed every design decision

Accessibility Standards:

Large touch targets, high contrast ratios, and readable typography for aging eyes

Progressive Disclosure:

Essential controls immediately visible, advanced features accessible but not overwhelming

Performance Optimization:

Minimal UI complexity enabled maximum CPU allocation to audio processing algorithms

Information Architecture

Thoughtful Hierarchy

Every element's position, size, and visual weight was carefully considered to guide the user's attention through a logical progression of creative decisions.

Visual Hierarchy

The interface follows a clear visual hierarchy: the interactive reels command attention at the top, the central 'Shame' control anchors the experience, while supporting parameters maintain their importance without overwhelming.

Color, scale, and positioning work in harmony to create an intuitive flow that mirrors the natural progression of tape processing decisions.

Primary Controls

Reels, Shame knob - immediate visual focus

Secondary Controls

Age, Environment - supporting parameters

Utility Controls

I/O trim, blend - workflow essentials

Feedback Elements

VU meters - processing visualization

Logic Pro X (AU) demonstration showing real-world parameter interaction and workflow integration

Technical Innovation

Analog Circuitry & Magnetic Tape Emulation

Design-driven algorithm development where user experience requirements shaped the fundamental approach to magnetic tape and analog circuitry modeling.

Design-Driven Emulation

Rather than modeling every aspect of magnetic tape physics, we identified the most musically significant degradation characteristics and built our algorithms around them. The interface dictated which phenomena deserved computational resources.

This selective approach allowed us to achieve authentic tape character while maintaining real-time performance—a critical constraint that shaped every algorithmic decision.

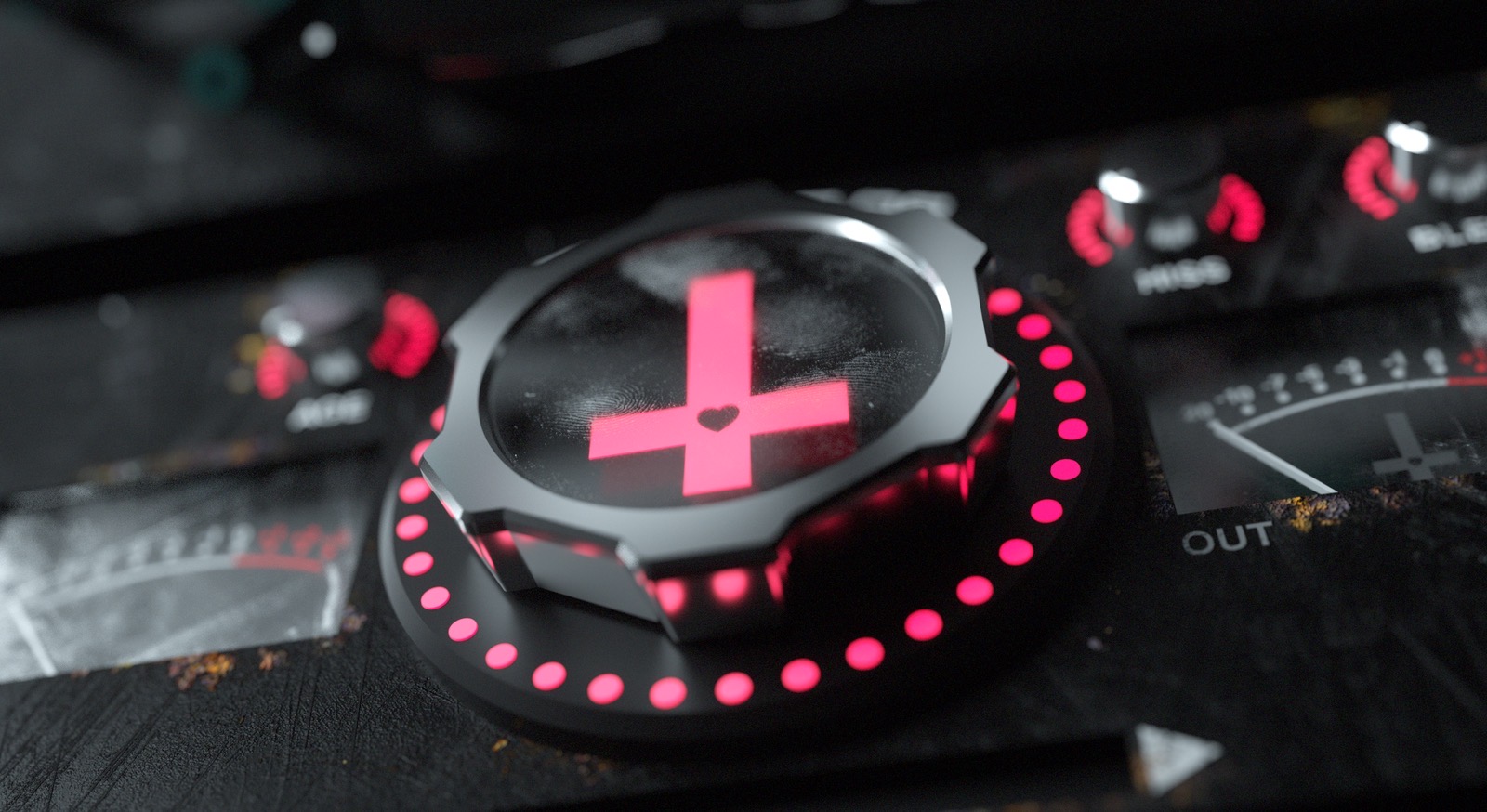

Physical hardware inspiration: The signature pink cross and LED ring that influenced both visual design and algorithmic approach

Design-Driven Algorithm Selection

Each emulated phenomenon was chosen not for technical completeness, but for its contribution to the user's creative workflow and sonic palette.

Wow & Flutter

Modeled as time-varying delay lines with stochastic period fluctuations, controlled by the central Shame parameter for intuitive creative control.

playPosition = curPos + depth * processWavetable()

Print-Through

Mechanical speed fluctuations that became sonic signatures of classic recordings, implemented as controlled bleed-through effects.

bleedSignal = previousLayer * printThroughAmount

Reel Dynamics

Expansion and contraction modeling affecting tape tension and speed consistency, visualized through interactive reel animations.

tension = baseValue * (1 + thermalExpansion)

Machine Learning Integration

We were pioneers in applying machine learning to account for the vast nonlinearities inherent in magnetic tape and analog circuitry. The AI didn't replace traditional DSP—it enhanced it.

Neural networks learned the complex interactions between multiple degradation factors, allowing single-parameter control of multi-dimensional sonic transformations.

Nonlinearity Modeling

Hysteresis Effects:

Magnetic domain memory affecting signal reproduction fidelity

Saturation Curves:

Non-linear tape response to varying signal levels and frequencies

Cross-Parameter Interactions:

Complex relationships between age, environment, and sonic characteristics

Human Factors for Audio Engineering

The emulation algorithms weren't just technical achievements—they became the foundation for innovative user interaction paradigms.

Interactive Reel Metaphor

The physical act of touching spinning reels became a direct manipulation interface for flanging effects. The emulation's delay line parameters responded to gesture velocity and pressure, creating an intuitive connection between physical action and sonic result.

Design Innovation: Real-time visual feedback where reel animation speed directly correlated with flanging intensity, making the invisible audible through motion.

Environmental Storytelling

The Hurricane Sandy environment setting transformed technical parameters into narrative elements. Users weren't adjusting abstract values—they were exploring the sonic archaeology of flood-damaged tape, making parameter exploration emotionally engaging.

UX Innovation: Environmental presets that bundled complex parameter relationships into meaningful, story-driven contexts.

Revolutionary Features

First-of-its-kind tape emulation with comprehensive modeling of magnetic particle instability, substrate deformation, and machine learning-driven nonlinearities.

Interactive Reels

Touch-responsive animated reels for real-time flanging effects, simulating physical tape manipulation.

Environment Simulation

Hurricane Sandy environment modeling with authentic flood damage effects on magnetic tape characteristics.

AI-Driven Processing

Machine learning algorithms account for vast nonlinearities in magnetic tape and analog circuitry.

Comprehensive Modeling

Drift, wow, flutter, scrape-flutter, print-through, and reel expansion/contraction simulation.

Technical Innovation

Advanced DSP algorithms and innovative UI design patterns that set new standards for audio plugin development.

Input Saturation Engine

Dual-path harmonic waveshaping with separate odd and even harmonic processing

The plugin employs sophisticated waveshaping algorithms using hyperbolic tangent functions to generate authentic tape saturation characteristics. Odd harmonics are processed throughtanh(2.0f * x) while even harmonics use tanh(0.272f * abs(x)).

Key Innovation: Real-time harmonic blending with 4kHz low-pass filtering to model high-frequency losses in vintage tape systems.

Hurricane Sandy Environment

Complex multi-stage degradation modeling based on flood-damaged tape characteristics

This groundbreaking feature simulates the sonic effects of tape damaged in Hurricane Sandy's flood waters, including periodic noise bursts, amplitude modulation through pink noise grains, and low-frequency rumble integration.

Noise Burst Generation

350ms envelope cycles with triangular bursts and 200ms silence gaps

Granular Modulation

Pink noise grains with 2kHz LP and 50Hz HP filtering for authentic scratch simulation

Impact & Recognition

The Kiss of Shame's open source release generated significant excitement in the audio development community.

2014

Original Development

2024

Open Source Release

117+

Stars on GitHub

"It's the world's first (and to my knowledge) only tape/analog circuitry emulation plugin that realistically models the effects of magnetic particle instability, lubricant loss, substrate deformation, drift, scrape-flutter, print-through and reel expansion/contraction."

— Eros Marcello, Original Developer

Demos + Influencer Reviews

Media

Experience the intuitive interface + hear the unique tape emulation that captivated the pro-audio community.

Original Product Teaser

"It's the Greatest Thing Since Sliced Tape"

Professional Review

In-depth analysis and demonstration

Comprehensive walkthrough of features and real-world application in professional mixing scenarios.

Quick Demo

Fast-paced feature showcase

Rapid demonstration of the interactive reels and tape degradation effects in action.

Community Review

User experience and feedback

Community feedback and real-world usage examples from audio professionals.

Technical Analysis

Deep dive into features

Technical breakdown of the plugin's innovative features and implementation details.
